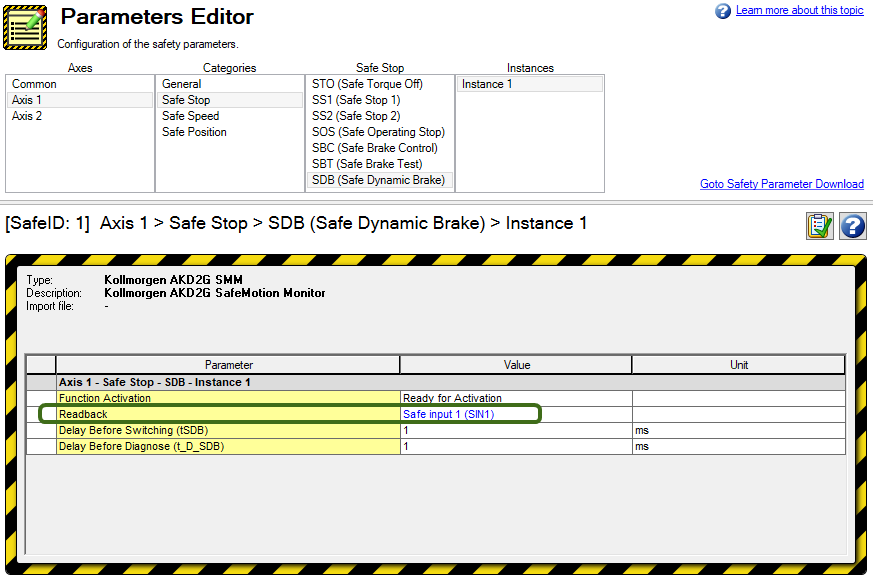

AXIS#.SAFEPARAM.SDB.READBACKSOURCE
Description
Indicates the digital input that is used for the read back input.
| Value | Description |
|---|---|
|
0 |
Not used |
|
1 |
Safe Input 1 |
|
2 |
Safe Input 2 |
|
3 |
Safe Input 3 |
|
4 |
Sage Input 4 |
|
5 |
Safe dual input 1 |
|
6 |
Safe dual input 2 |
Context
For complete SDB information, refer to SDB (Safe Dynamic Brake).
Related safety parameters:
Versions
|
Action |
Version |
Notes |
|---|---|---|
|
Implemented |
02-00-00-000 |
|
General Information
|
Type |
Read/Write |
|
Units |
N/A |
|
Range |
0 or 6 |
|
Default Value |
0 (Not used) |
|
Data Type |
Integer |
|
Stored in Non-Volatile Memory |
No |
Fieldbus Information
|
Command |
Index |
SubIndex |
Data Type |
Units |
Float Scale |
Access |
PDO Mappable |
|---|---|---|---|---|---|---|---|
|
AXIS1.SAFEPARAM.SDB.READBACKSOURCE |
3158h |
02h |
Unsigned8 |
- |
- |
Read/Write |
No |
|
AXIS2.SAFEPARAM.SDB.READBACKSOURCE |
3258h |
02h |
Unsigned8 |
- |
- |
Read/Write |
No |
